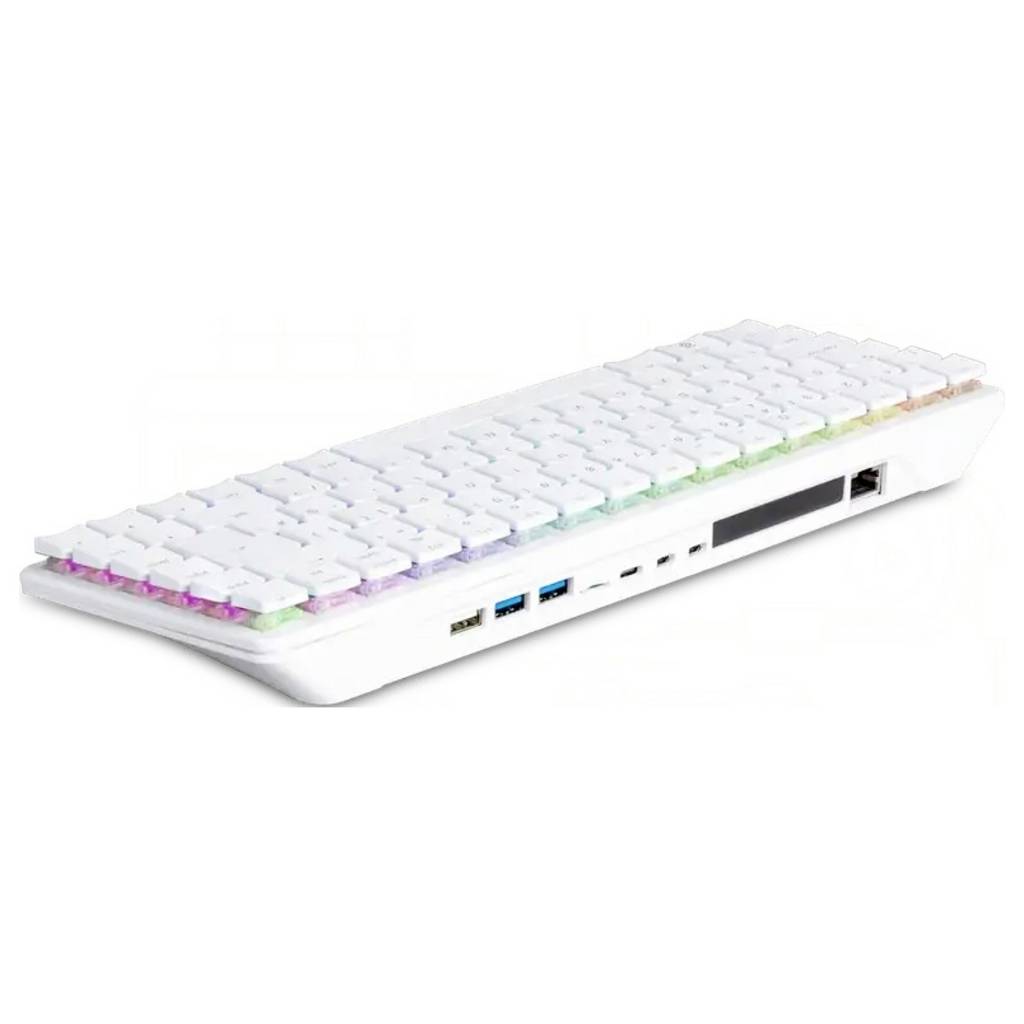

Raspberry Pi® PI500+DE Raspberry Pi® 500+ 16 GB 4 x 2.4 GHz SC1238

Raspberry Pi® PI500+DE Raspberry Pi® 500+ 16 GB 4 x 2.4 GHz

Raspberry Pi® PI500+DE Complete PC 4x 2.4 GHz, 16 GB RAM, German keyboard layout

2.4 GHz quad-core 64-bit arm Cortex-A76 CPU with cryptographic extensions, 512 KB L2 cache per Kern and 2 MB shared L3 cache
16 GB LPDDR4X-4267 SDRAM
Internal 256 GB Raspberry Pi SSD
Support for M.2-NVMe SSDs up to form factor 2280
Mechanical keyboard with 84, 85 or 88 keys (depending on regional variant)
Gateon KS-33 blue low-profile switch
Dual band (2.4 GHz and 5.0 GHz) IEEE 802.11b/g/n/ac Wi-Fi
Bluetooth 5.0, BLE
Gigabit Ethernet
2× USB 3.0 connection and 1× USB 2.0 connection
Horizontal 40-pin GPIO header
2× Micro-HDMI® connection (supports up to 4Kp60)
H.265 (4Kp60 decoding)
OpenGL ES 3.0 graphics
SD card support: MicroSD card slot for operating system and data storage
Power supply 5 V DC via USB-C port


Slim form, remarkable function
The Raspberry Pi 500+ combines the power of a quad-core 64-bit arm processor and the RP1 I/O controller 5 in an ergonomic and tactile mechanical keyboard and combines uncompromising performance with 16 GB RAM and 256 GB memory for a truly first-class desktop computer experience.

Easy to click
The Raspberry Pi 500+ is equipped with flat Gateon KS-33 blue switches that offer long lead-out times and quick operation to ensure a comfortable and smooth typing experience. Do you want a more individual look? A key cap opener is included in the delivery, with which you can replace the standard keys.

256 GB memory
The Raspberry Pi 500+ is equipped with a 256 GB Raspberry Pi SSD that ensures fast start-up times and reliable data transfer. With the accompanying tool for opening the casing you can replace the SSD, in order to increase the storage capacity.

The lighting is fantastic
The Raspberry Pi 500+ has bright, clear LEDs placed under mechanical switches. Change between the pre-set patterns or program the LEDs individually for a really individual look

This text is machine translated.

Specifications:
Bluetooth: 5.0 · Clock speed: 2.4 GHz · External ports (SBCs): USB-C® (current),USB 2.0,2x USB 3.0,2x HDMI™,LAN (10/100/1000),micro SD · GPU: Broadcom Video Core VII · Internal ports (SBCs): GPIO (40-pin) · Memory capacity: 256 GB · Memory type: DDR4,SRAM · Number of cores: 4 x · Operating system / Version: Raspbian · Output current: 5 A · Output voltage: 5 V DC · Power supply (LOV): via PSU · Processor (LOV): ARM Cortex-A76 · Product size (height): 35 mm · Product size (length): 123 mm · Product size (width): 312 mm · RAM: 16 GB · Type (SBCs): Raspberry Pi® 500+ · Wi-Fi (TV): b/g/n/ac

Note:
Raspberry Pi® 500+ will be produced by at least January 2035.
