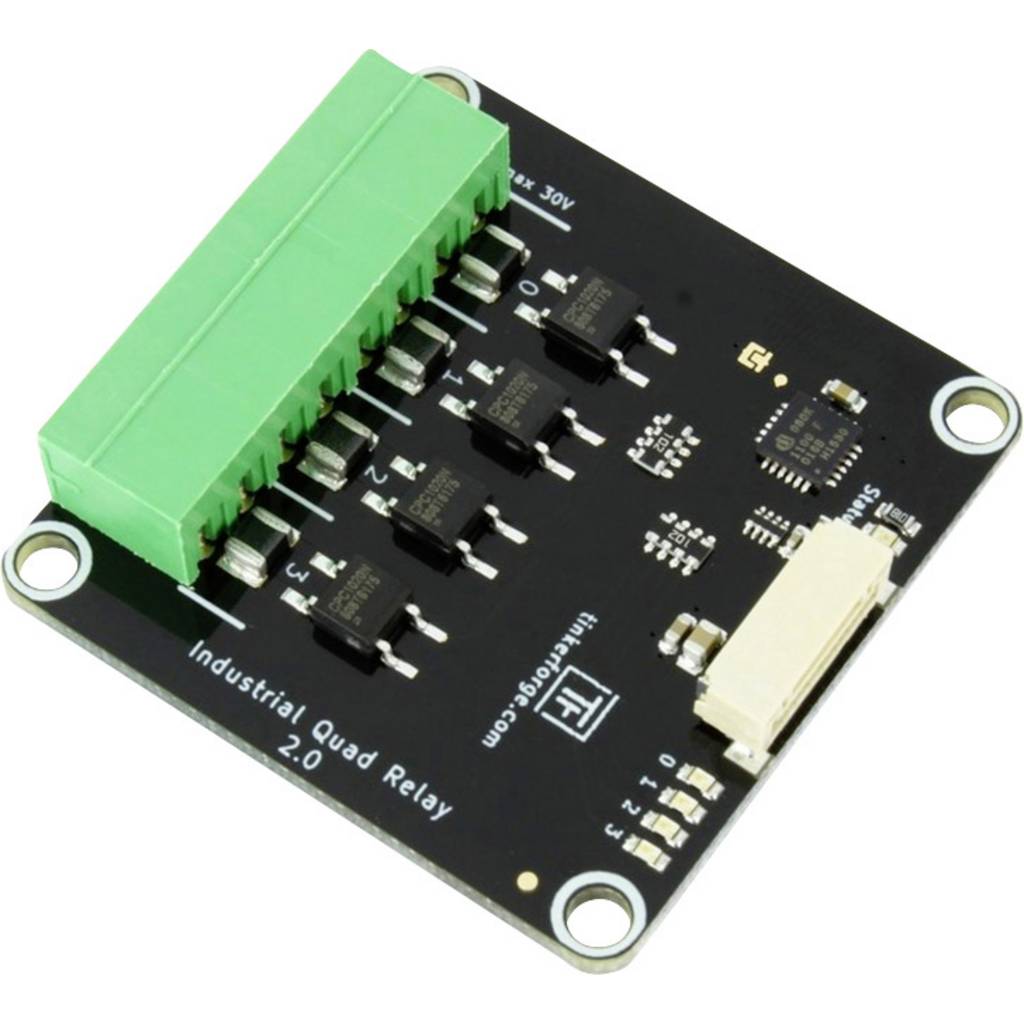

TinkerForge 2102 Industrial Quad Relay Bricklet 2.0

4 Solid State Relays
Switches up to 30V with 1.2A
Electrically isolated

The Industrial Quad Relay Bricklet 2.0 can be used to expand Bricks with four galvanically isolated solid state relays. Each relay can switch up to 1.2 amps at 30 volts. The isolation of the output allows use without a direct electrical connection, so that ground loops can be avoided and an additional safety is ensured.

Typical applications can be found in the control of industrial products, such as PLCs or frequency converters. In addition, it makes sense to use the device in areas where different ground potentials may not be connected.

The Industrial Quad Relay Bricklet 2.0 has a 7-pin Bricklet plug and is connected with a 7p-10p Bricklet cable with a brick.

This text is machine translated.

Equipment:
Power consumption: 31mW (6.2mA at 5V) + 3mW (0.6mA at 5V) per activated relay
Output type: Four electrically isolated solid state relays
Maximum switching current: 1.2A
Maximum switching voltage: 30V
Isolation: 1500Vrms (data sheet specification)

Technical specifications:
Additional product specs: Dimensions (W x D x H): 40x40x11 mm
Weight: 9 g · Suitable for (single board PCs): TinkerForge
